Storm Water Chambers

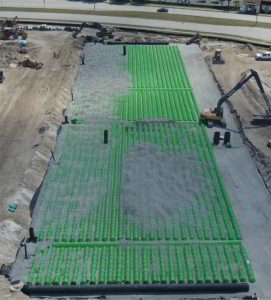

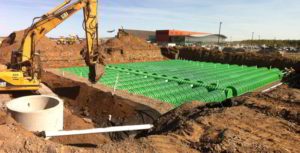

Timewell offers a complete line of storm water chambers for your underground storm water control and storage. Storm water chambers provide a cost-effective solution for underground detention and infiltration.

The chambers we provide are designed to withstand AASHTO HS-25 defined loads when installed according to our recommended installation instructions. With chamber heights from 8.5” to 48” tall, these chambers are capable of accommodating both extreme low-profile limitations as well as high-volume demands. The unique internal manifold feature allows for maximum design flexibility, provides a significant cost-savings to the overall project, and, in most applications, can also reduce the system footprint.

Chamber System Features
  • Overlapping rib connection
  • Unique in-line internal manifold
  • High infiltrative capability
  • Lightweight
  • Variety of sizes
  • Chemically resistant
System Benefits
  • Maximum use of land area
  • Ability to recharge water on-site
  • Single or multi-level systems
  • Less heavy equipment required
  • The units nest on pallets for convenient shipping and stockpiling of material
  • Allows for greater infiltration into the ground
  • Permits further development
  • Reduces insurance liabilities and potential breeding grounds for infectious mosquitoes associated with open ponds
  • Free design assistance available



Chamber Resources & Downloads

Trying to determine the amount of storage you need or which chamber type will work with your jobsite requirements? Checkout these design and storage calculators as you’re putting together your project. Or Contact Us today! The Timewell team is happy to help you evaluate the chamber types or design a custom storm water chamber system.

Contactor Field Drain C-4 HD

The Contactor® Field Drain C-4HD is a 8.5″ (216 mm) tall, ultra-low profile chamber and is typically used for installations with depth restrictions or when a larger infiltrative area is required.

Plastic Storm Water Chamber contactor-field-drain-c4hd-blue
Contactor 100HD

The Contactor® 100HD is a 12.5″ (318 mm) tall, low profile chamber and is typically used for installations with depth restrictions or when a larger infiltrative area is required. The Contactor 100HD has the side portal internal manifold feature. The HVLV® SFCx2 Feed Connector is inserted into the side portal of the Contactor 100HD to create the internal manifold.

Plastic Storm Water Chamber 100hd-blue
Recharger 150XLHD

The Recharger® 150XLHD is an 18.5″ (470 mm) tall, lower profile chamber and is typically used for installations with depth restrictions or when a larger infiltrative area is required. The Recharger® 150XLHD has the side portal internal manifold feature. HVLV® FC-24 Feed Connectors are inserted into the side portals to create the internal manifold.

Plastic Storm Water Chamber recharger-150xlhd-blue-angled-left_SILO
Recharger 280HD

The Recharger® 280HD is a 26.5″ (673 mm) tall, midsize chamber and is typically used for installations with depth restrictions or when a larger infiltrative area is required. The Recharger® 280HD has the side portal internal manifold feature. HVLV® FC-24 Feed Connectors are inserted into the side portals to create the internal manifold.

Plastic corrugated Stom Water Chamber recharger-280hd-angled-left-white-stripe-blue_RT-2
Recharger 330XLHD

The Recharger® 330XLHD is a 30.5″ (775 mm) tall, high capacity chamber. Typically when using this model, fewer chambers are required resulting in less labor and a smaller installation area. The Recharger® 330XLHD has the side portal internal manifold feature. HVLV® FC-24 Feed Connectors are inserted into the side portals to create the internal manifold.

Recharger 360HD

The Recharger® 360HD is a 36″ (914 mm) tall, high capacity chamber. Typically when using this model, fewer chambers are required resulting in less
labor and a smaller installation area. The Recharger® 360HD has the side portal internal manifold feature. HVLV® FC-48 Feed Connectors are inserted into the side portals to create the internal manifold.

Plastic Storm Water Chamber recharger-360hd-side-left-2
Recharger 902HD

The Recharger® 902HD is a 48″ (1219 mm) tall, high capacity chamber. Typically when using this model, fewer chambers are required resulting in less labor and a smaller installation area. The Recharger® 902HD has the side portal internal manifold feature. HVLV® FC-48 Feed Connectors are inserted into the side portals to create the internal manifold.

Plastic Storm Water Chamber 902HD_3-1
HVLV FC 24 Feed Connector

HVLV® FC-24 Feed Connectors may be used to create an internal manifold by inserting them into the side portals of the CULTEC stormwater chamber. The HVLV® FC-24 Feed Connector may be used with Recharger® 150XLHD, 180HD, 280HD, and 330XLHD chambers. They have a larger flow capacity than 12″ (300 mm) diameter pipe.

StormFilter 330

The StormFilter® 330 is designed to be a secondary in-line filter system that effectively removes many of the smaller particles not eliminated by conventional structures during the pretreatment process. StormFilter® 330 is a pass-through filter system. It has a welded and secured solid bottom.

StormFilter T-80

CULTEC StormFilter® T-80 is a cost-effective filtration unit used to remove leaves and debris from rainwater collected by catchbasins or gutters. StormFilter T-80 prevents leaves and debris from clogging outflow systems and piping.

Chamber Literature

Here are some brochures to help you get to know storm water chambers, their benefits and how they work.
