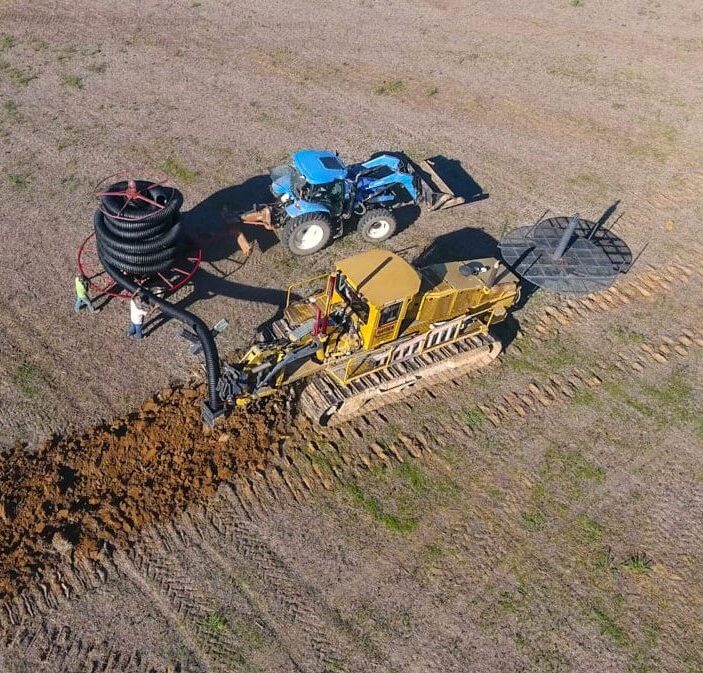

MaxFlex by Timewell combines the strength of dual-wall pipe with the flexibility and ease of installation of single-wall pipe, making it a game-changer for the drainage industry. Meeting or exceeding ASTM F3390 standards, MaxFlex is designed for easy transport and fast installation, coiling effortlessly for convenient handling. Whether you’re using a trencher or tile plow, MaxFlex offers superior drainage flow with the convenience you need to do the job efficiently.
Your boot’s internal pipe path should have a minimum bend radius of 50”.
A cutting width roughly 25% wider than the pipe’s outside diameter is preferred.
MaxFlex is recommended for drainage plow installations at burial depths up to 8’.
Depending on size, MaxFlex will increase acre drainage capacity by 10 to 20 acres. It is available in 6″, 8″, 10″, 12″ and 15″ diameters. Timewell recommends reviewing all company installation and handling instructions as with all new products.
| Nominal Diameter |
Inside Diameter (Average) |
Outside Diameter (Average) |
Maximum Length |
| 6″ | 5.93″ | 6.87″ | 1360′ |
| 8″ | 8.06″ | 9.34″ | 940′ |
| 10″ | 10.08″ | 11.87″ | 575′ |
| 12″ | 12.09″ | 14.68″ | 380′ |
| 15″ | 15.12″ | 17.65″ | 220′ |
