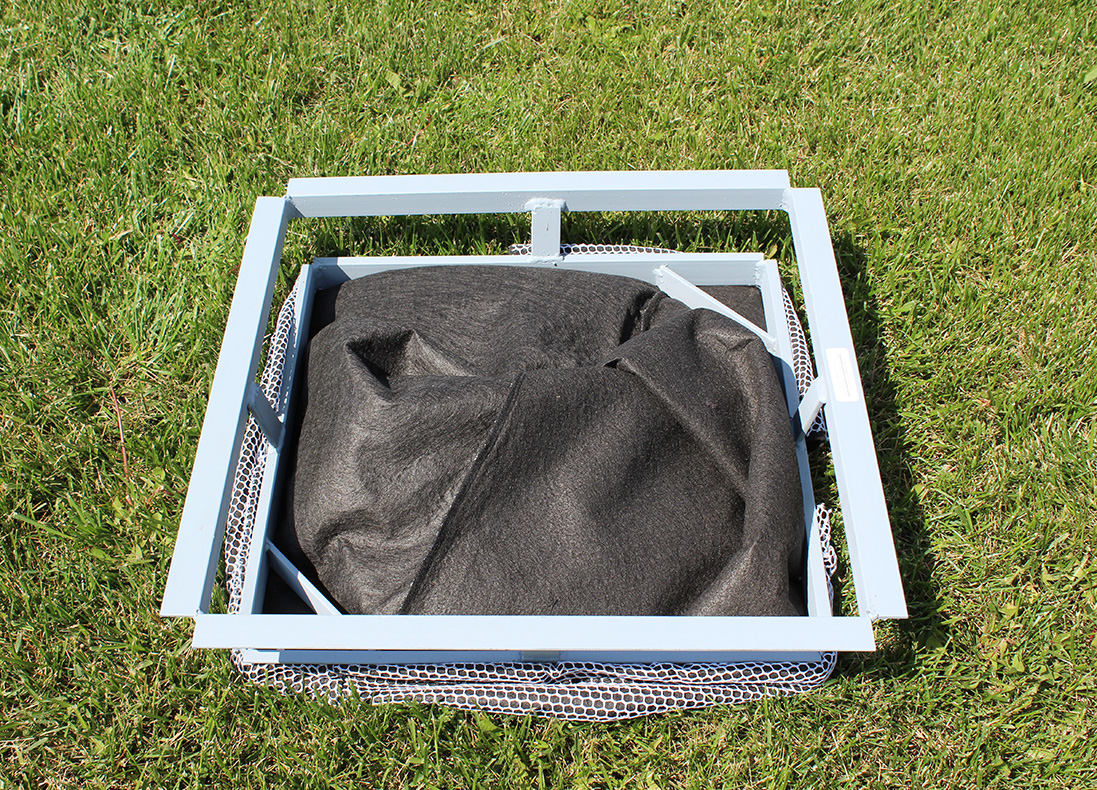

Timewell offers a complete line of PVC inlets, including drain basins and inline drains. Each drain basin is custom-made per your specifications, including diameter, height, inlet/outlet location, and grate type. Drain basins and inline drains are available in 8”-36” diameter. (Minimum angle requirements apply for inlet/outlet locations.) Timewell also offers a variety of inlet filters.
MaXflo AE is utilized for various reasons, including stormwater inlets, changes in pipe type, flow line elevation adjustments, directional changes, and modifications in pipe diameter. Its versatility makes it suitable for a wide range of drainage applications across different sectors, including roads and highways, government projects, commercial developments, educational facilities, golf courses, and parks and recreational areas.

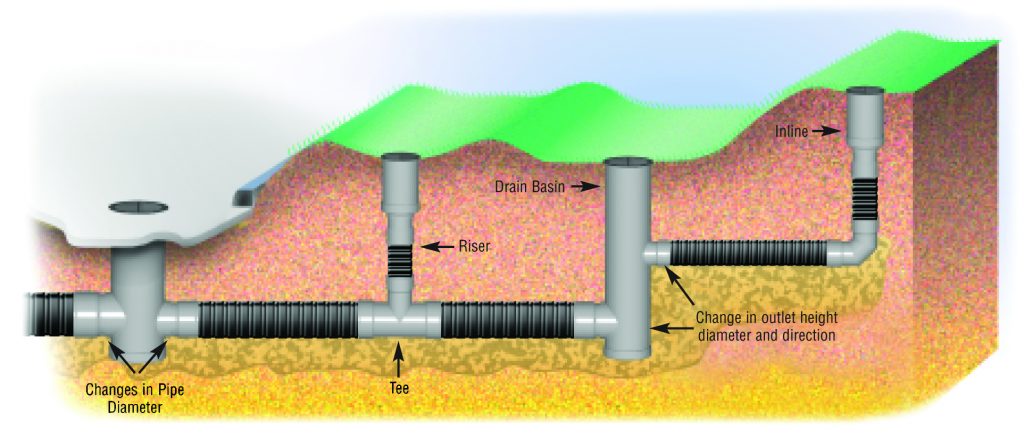

PVC Drain Basins are used as a junction box when drainage system inlets or outlets change diameter, change pipe type, change elevation or change direction. Drain basins allow for multiple inlets or outlets in one structure and for a water inlet and sediment collection point entering a drainage system.

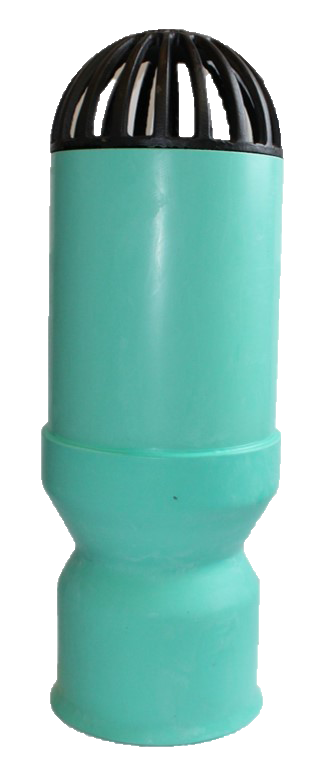

Inline drains are used at the beginning of a drain line and when adding a new water inlet to an existing drain line using a riser pipe and tee.

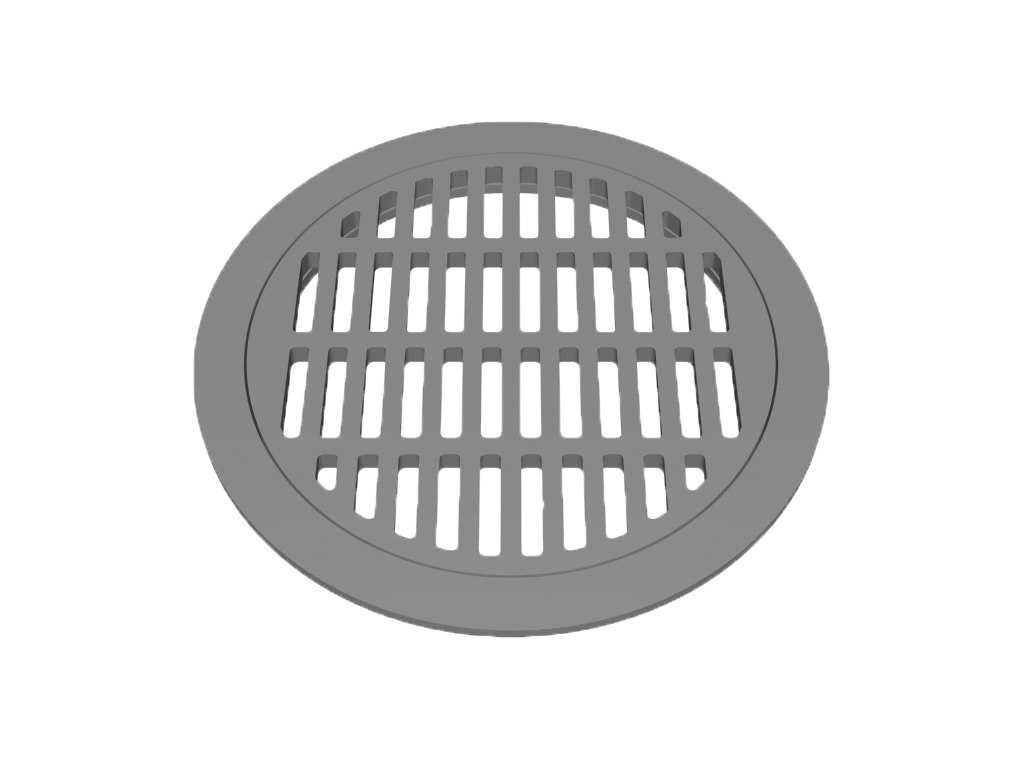

All grates and covers are designed specifically to fit surface drainage PVC inlets including drain basins and inline drains. These castings are manufactured from metal conforming to ASTM A536 grade 80-55-06 for ductile iron.
