PVC Inlets

Timewell offers a complete line of PVC inlets including drain basins and inline drains. Each drain basin is custom made per your specifications, including diameter, height, inlet/outlet location and grate type. Drain basins and inline drains are available in 8”-36” diameter. (Minimum angle requirements apply for inlet/outlet locations.) Timewell also offers a variety of inlet filters.

Reasons for Use
  • Storm Water Inlet
  • Change in Type of Pipe
  • Change in Flow Line Elevation
  • Change in Direction
  • Change in Pipe Diameter
Drainage Applications
  • Roads and Highways
  • Government
  • Commercial
  • Educational Facilities
  • Golf Courses
  • Parks and Recreational Facilities

PVC Drain Basin

PVC Drain Basins are used as a junction box when drainage system inlets or outlets change diameter, change pipe type, change elevation or change direction. Drain basins allow for multiple inlets or outlets in one structure and for a water inlet and sediment collection point entering a drainage system.

PVC Drain Basin Storm Water Detail
Timewell PVC Drain Basin Construction

PVC Inline Drain

Inline drains are used at the beginning of a drain line and when adding a new water inlet to an existing drain line using a riser pipe and tee.

PVC Inline Drain Storm Water Detail

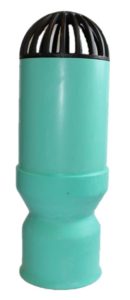

PVC Inlet - Storm Water PVC Inline Drain & Domed Grate Drain Cover

Grates and Covers

All grates and covers are designed specifically to fit surface drainage PVC inlets including drain basins and inline drains. These castings are manufactured from metal conforming to ASTM A536 grade 80-55-06 for ductile iron.

6in – 30in Domed Casting Detail

12in – 36in Round Casting Detail

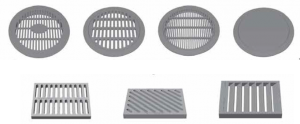

Drainage structure PVC inlet grate
